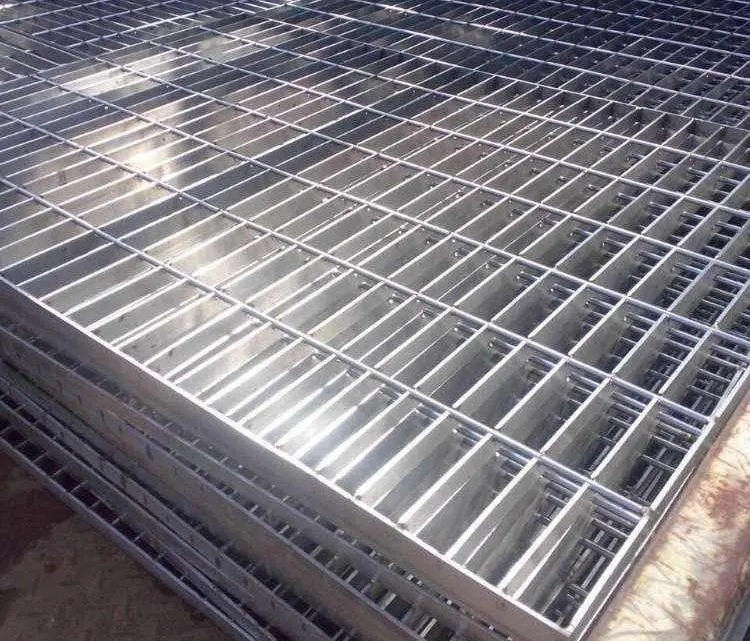

STAINLESS STEEL GRATINGS
Vikrant offers a wide range of Stainless Steel (INOX) grating, ideally suited for applications where the potential for rust or corrosion is a major consideration. We can manage the entire project, from drawing and layout specification, through manufacturing and quality control to delivery.
Stainless Steel grating is usually custom manufactured to project specifications. The standard panel sizes are generally the same as steel grating stock panels, depending on profile chosen.
Our Gratings are widely used in Trenches, Platform Walkways in Oil & Gas Sector, Petrochemical Industries, Civil Constructions, Food Industries, Chemical Industries, Industrial kitchens, etc.,
Type Of Stainless Steel Grating
- Top Notch Grating
- Pass Thru Grating
- Press Lock Grating
Top Notch Grating
Top Notch Gratings is constructed by Rectangular Flats and Round Bars. The grating will have the round bar on the top of the grating by using manual punching method.
Specification
| Load Bar Height | 20,25,30,40,50 upto 60mm |
|---|---|
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar | 6,8 & 10mm Round (or) 6,8 & 10mm Square Bar |
| Load Bar Type | Plain (or) Serrated |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |
Application: Platform Walkways in Oil and Gas Sector, Petrochemical Industries, Civil Construction, Food Industries etc.,
Pass Thru Gratings
Our Pass Thru This Grating is constructed by Rectangular Flats and Round Bars. The Grating will have the round bar on the Centre of the Flat bar by using manual punching method.
Specification
| Load Bar Height | 20,25,30,40,50 upto 60mm |
|---|---|
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar | 6,8 & 10mm Round Bar |
| Load Bar Type | Plain (or) Serrated |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |
Application: Platform Walkways in Oil and Gas Sector, Petrochemical Industries, Civil Construction, Food Industries etc.,
Press Lock Gratings
This type of Gratings will be constructed with the Rectangular Flats. In this type grating, both the flats will be intersected to each other and perpendicular to each other.
Specification
| Load Bar Height | 20,25,30,40,50 upto 60mm |
|---|---|
| Load Bar Thickness | 3,4,5 & 6mm |
| Cross Bar Height | 10,12,15,20,25,30,40,50 upto 60mm |
| Cross Bar Thickness | 3,4,5 & 6mm |
| Load Bar Type | Plain (or) Serrated |
| Material | Stainless Steel AISI 304/ 304 L/ 316/ 316 L Grade |
| Finish | Mill Finish/ Brush Finish/ Mirror Finish/ Electro Polish Finish |
Application: Vehicle Passing Trench, Platform Walkways in Oil and Gas Sector, Petrochemical Industries Civil Construction, Food Industries, Kitchens, etc.,
